Double Wye Fitting Use / A sanitary combo is a combination wye & 1/8 bend already made in one fitting.
byAdmin-
0
Double Wye Fitting Use / A sanitary combo is a combination wye & 1/8 bend already made in one fitting.. Nonconductive and is unaffected by either galvanic or electrolytic action. Dwv wye upright combination & 1/8 bend (2pc) dwv wye upright combo wye & 1/8 bend. The fitting called a sanitary tee looks like it could do the job, but it doesn't. The second is a pipe wye in a vertical position with three branches. This mueller industries drain, waste, and vent (dwv) double wye features chemical resistance, however the fitting is not compatible with solvents such as ketones, aromatics, and some chlorinated hydrocarbons.
The overflow will not allow air to enter the system, as water would have to siphon the trap in order to get air through the overflow. If you are venting a horizontal run where it switches from horizontal to vertical you can use a sanitary tee (vertically) instead of a 90° and then run the vent vertically from the top of the tee. Pvc dwv double wyes are a type of pvc fitting with four connection points. Industrial (5) water and waste water treatment (5) aquarium and waterpark (5) dwv wye reducing double wye. This product is highly durable.
Spears 4 Pvc Dwv Double Wye And 45 Elbow Combo Diggerslist from static.diggerslist.com If you are venting a horizontal run where it switches from horizontal to vertical you can use a sanitary tee (vertically) instead of a 90° and then run the vent vertically from the top of the tee. Wye is used to connect a horizontal drainpipe to a vertical one. Cpvc pipe fittings for hot water I prefer single wyes in groundworks anyway so that i can give them that slight tilt on the fitting. Types of fittings, materials, uses, sanitary fittings, sanitary wye The y connector directs the water downward, eliminating direct flow into the opposite waste line. When roughing for back to back pedestal sinks. Country of origin is subject to change.
Country of origin is subject to change.

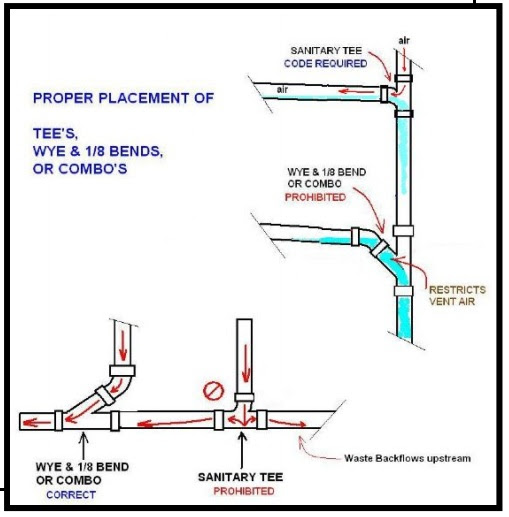

With a wye, a line can be divided into two equal lines in two different directions. This mueller industries drain, waste, and vent (dwv) double wye features chemical resistance, however the fitting is not compatible with solvents such as ketones, aromatics, and some chlorinated hydrocarbons. Nonconductive and is unaffected by either galvanic or electrolytic action. Entering downstream is always better with toilets. It would not be up to standards, but i have seen this setup work with no problems. The nibco pvc dwv double wye is used in residential and commercial drain, waste and vent systems. In other words, they attach a vertical pipe to a horizontal pipe. The y connector directs the water downward, eliminating direct flow into the opposite waste line. It is shaped differently than the wye and should only be aligned vertically, or it may block up. If you use a wye for the vertical for a trap arm, when the trap is installed and if the pipe is properly pitched, it puts the trap weir above the wye inlet which theoretically can cause the trap to siphon: Country of origin is subject to change. A sanitary tee cannot be laid on its back, horizontally: When you use a dbl combo (wye&1/8bend), you cut the allowable side arm distance by 1/2, the allowed distance for a double san tee (cross).
Pvc fittings are for drain, waste and vent purposes. In other words, they attach a vertical pipe to a horizontal pipe. With a wye, a line can be divided into two equal lines in two different directions. These two fittings seem incredibly similar in design, and an amateur plumber might think that it's okay to use one in the place of the other. It is shaped differently than the wye and should only be aligned vertically, or it may block up.
Pvc Dwv Double Fixture Fitting H X H X H X H from cdn11.bigcommerce.com Dwv wye reducing street wye. Wyes are incorrect for this application. These two fittings seem incredibly similar in design, and an amateur plumber might think that it's okay to use one in the place of the other. This product is manufactured in china. If you use a wye for the vertical for a trap arm, when the trap is installed and if the pipe is properly pitched, it puts the trap weir above the wye inlet which theoretically can cause the trap to siphon: Two of the pvc pipe connections are straight across and two are on 45 degree angles. 3 inch pvc/dwv double wye, all hub, white, use to bring 2 branch lines into horizontal drain pipe. With the first one, i would not do a double wye, but have the wye downstream.
When you use a dbl combo (wye&1/8bend), you cut the allowable side arm distance by 1/2, the allowed distance for a double san tee (cross).
It is also used to split branch lines. It reduces the entrained solid at the junction. When roughing for back to back pedestal sinks. The pvc dwv 45° double wye features all hub connections and allows for a connection to be made in continuous pipeline and branch out to different directions. Show 9 18 27 per page. If you are venting a horizontal run where it switches from horizontal to vertical you can use a sanitary tee (vertically) instead of a 90° and then run the vent vertically from the top of the tee. Industrial (5) water and waste water treatment (5) aquarium and waterpark (5) dwv wye reducing double wye. Nonconductive and unaffected by either galvanic or electrolytic action, this mueller industries drain, waste, and vent (dwv) double wye is corrosion. Due to new double tee fittings required by upc, i suggest you go w/a double combo fitting, if your side arm distance can handle it. The first pic of the cast fitting eliminates using a y and 45 s for drain, the middle pvc fitting is against code by me, and the last one you turn up so the 3 inch on the bull would goto the toilet and the side outlets to tub, shower or sink the top is vent and bottom to waste.they are handy for bathroom groups if the stack can go straight down, saves alot of fittings and looks cleaner in the. When connecting any vertical waste drop to a horizontal run the proper way to do it is to either use a wye & 1/8 bend (45 deg), or a sanitary combo. A second case to consider is where a vertical pipe serves both as a drain and a vent. When you use a dbl combo (wye&1/8bend), you cut the allowable side arm distance by 1/2, the allowed distance for a double san tee (cross).
Cpvc pipe fittings for hot water This product is easy to use. Types of fittings, materials, uses, sanitary fittings, sanitary wye 3 inch pvc/dwv double wye, all hub, white, use to bring 2 branch lines into horizontal drain pipe. Wyes are incorrect for this application.

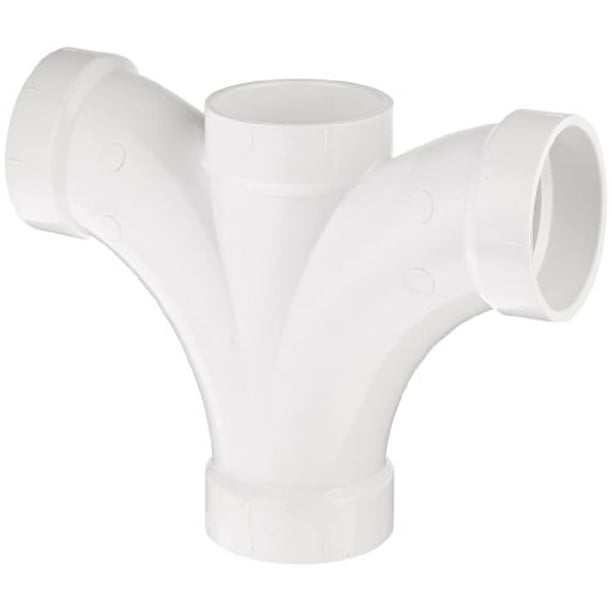

8 In Double Wye Sdr 35 3d Warehouse from 3dwarehouse.sketchup.com It is also used to split branch lines. The nibco pvc dwv double wye is used in residential and commercial drain, waste and vent systems. If you use a wye for the vertical for a trap arm, when the trap is installed and if the pipe is properly pitched, it puts the trap weir above the wye inlet which theoretically can cause the trap to siphon: Connections to horizontal drain lines should be made with wye (y) fittings. Dwv wye reducing street wye. With the first one, i would not do a double wye, but have the wye downstream. A sanitary combo is a combination wye & 1/8 bend already made in one fitting. 3 inch pvc/dwv double wye, all hub, white, use to bring 2 branch lines into horizontal drain pipe.
Dwv wye reducing street wye.
This is why this pvc fitting is given the name wye or y. 3 inch pvc/dwv double wye, all hub, white, use to bring 2 branch lines into horizontal drain pipe. The y connector directs the water downward, eliminating direct flow into the opposite waste line. With the first one, i would not do a double wye, but have the wye downstream. If you use a wye for the vertical for a trap arm, when the trap is installed and if the pipe is properly pitched, it puts the trap weir above the wye inlet which theoretically can cause the trap to siphon: The fitting called a sanitary tee looks like it could do the job, but it doesn't. Sort by name sku price size set descending direction. Types of fittings, materials, uses, sanitary fittings, sanitary wye Connections to horizontal drain lines should be made with wye (y) fittings. Entering downstream is always better with toilets. Nonconductive and is unaffected by either galvanic or electrolytic action. Wye is used to connect a horizontal drainpipe to a vertical one. Show 9 18 27 per page.
